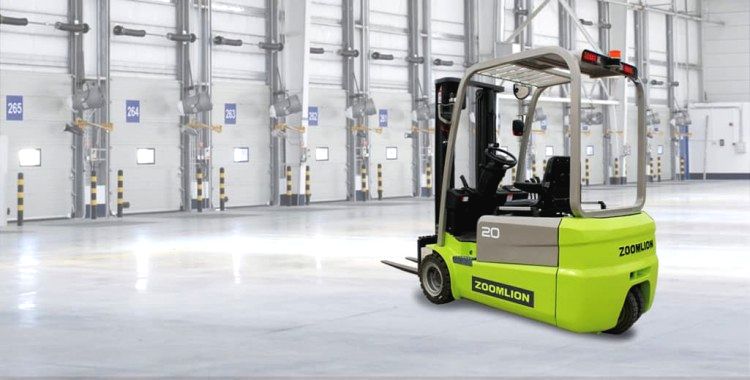

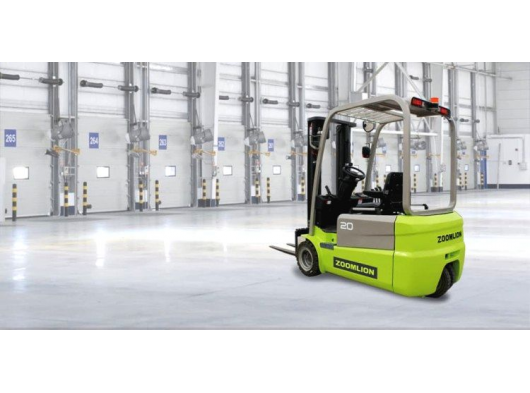

Zoomlion Electric Forklift FE16/18/20H Forklift & İş Makinesi & Alım Satım Sitesi & Yan Ekipman & Yedek Parça

Video

Fotoğraflar yükleniyor

Teklif Usulü

Specifications			Unit	FE16	FE18	FE20
Characteristics	Power			battery	battery	battery
	Capacity		kg	1600	1800	2000
	Center of load		mm	500	500	500
	Lifting height		mm	3300	3300	3300
	Free lifting height		mm	85	85	90
	Forks L×W×H		mm	920x100x35	920x100x35	920x122x40
	Mast tilt angle Forward/Backward		。	6/6.5	6/6.5	6/6.5
	Min.turning radius		mm	1580	1580	1580
	Min right angle stacking width		mm	3300	3300	3300
	Min right angle Aisle width		mm	1780	1780	1780
	Min.ground clearance (mast)		mm	95	95	95
	Overhead guard height		mm	1990	1990	1990
	Height from seat to overhead guard		mm	1000	1000	1000
	Front overhang		mm	375	375	380
Perf	Max.traveling speed(loaded/unload )		km/h	13/14.5	13/14.5	12.5/14
	Max.lifting speed（loaded/unload）		mm/s	320/450	300/450	290/400
	Gradeability		%	15	15	15
Dimensions	Overall length （without fork）		mm	1954	1954	1954
	Overall width		mm	1100	1100	1100
	Mast extended height (with bracket)		mm	4300	4300	4300
	Mast lowered height		mm	2165	2165	2165
Chassis	Tire	Front		18X7-8	18X7-8	18X7-8
	Tire	Rear		15X4.5-8	15X4.5-8	15X4.5-8
	Wheelbase		mm	1390	1390	1390
	Tread width	Front/Rear	mm	940/180	940/180	940/180
	Curb weight	None-load	kg	3150	3300	3420
Powertrain	Battery	Voltage/Capacity	V/Ah	48/500	48/500	48/630
	Motor	Traveling	KW	4.5*2	4.5*2	4.5*2
	Motor	Lifting	KW	10	10	10
	Controller			CURTIS	CURTIS	CURTIS
	Control type			AC	AC	AC
	Working pressure		Mpa	14.5	17.5	17.5
