| Marka | Personel yükseltici |

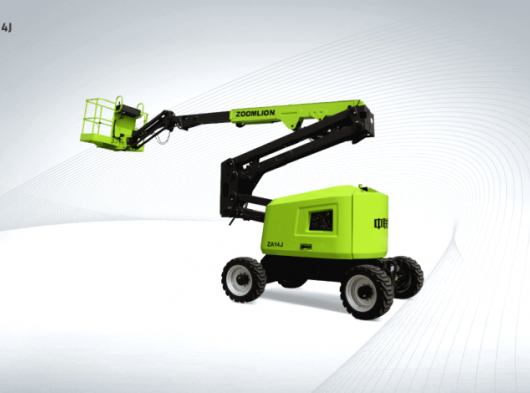

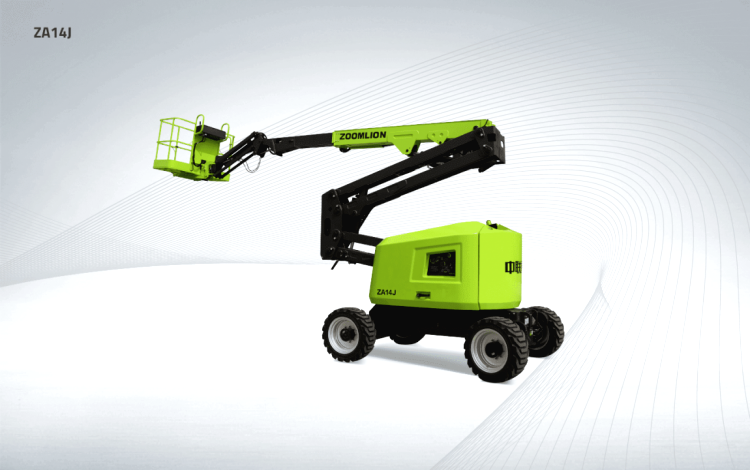

| Model | ZA14J | ZA18J | ||
| Metric | Imperial | Metric | Imperial | |
| Size | ||||
| Work Height | 15.80m | 51ft 10in | 20.93m | 68ft 8in |
| Platform Height | 13.80m | 45ft 3in | 18.93m | 62ft 1in |
| Horizontal Outreach | 8.30m | 27ft 3in | 12.35m | 40ft 6in |
| Up and Over Height | 7.55m | 24ft 9in | 8.3m | 27ft 3in |
| A - Stowed Length | 6.57m | 21ft 7in | 9.12m | 29ft 11in |
| B - Stowed Width | 2.30m | 7ft 7in | 2.49m | 8ft 2in |
| C - Stowed Height | 2.27m | 7ft 5in | 2.58m | 8ft 6in |
| D - Platform Length | 1.83m | 6ft | 2.44/1.83m | 8/6ft |
| E - Platform Width | 0.76m | 2ft 6in | 0.91/0.76m | 3ft/2ft 6in |
| F - Wheelbase | 2.36m | 7ft 9in | 2.52m | 8ft 3in |
| G - Ground Clearance | 0.42m | 1ft 5in | 0.42m | 1ft 5in |
| Performance | ||||
| Platform Capacity | 300kg | 660 lb | 250kg | 550 lb |
| Drive Speed | 6.8km/h | 4.23 mph | 6.1km/h | 3.79 mph |
| Gradeability | 45% | 45% | 45% | 45% |
| Axles Oscillation | 0.1m | 4in | 0.2m | 8in |
| Turning Radius (Inside) | 2.06m | 6ft 9in | 2.51m | 8ft 3in |
| Turning Radius (Outside) | 4.78m | 15ft 8in | 5.47m | 17ft 11in |
| Swing | 355° | 360° continuous | ||
| Platform Rotation | ±90° | ±90° | ||
| H-Tail Swing | 0 | 0 | ||
| Max. Working Slope | 5° | 5° | ||
| Max. Wind Speed | 12.5m/s | 27.96mph | 12.5m/s | 27.96mph |
| Power | ||||
| Diesel Engine | Kubota V2403 | Kubota V2403 | ||
| Engine Power | 36kw/2600rpm | 48.3hp/2600rpm | 36kw/2600rpm | 48.3hp/2600rpm |
| Fuel Tank Capacity | 65L | 17.2 (us gal) | 150L | 39.6 (us gal) |
| Auxiliary Power | 12V | 12V | ||
| Control Voltage | 12V | 12V | ||
| Hydraulic System Capacity | 150L | 39.6 (us gal) | 160L | 42.3 (us gal) |
| Hydraulic Tank Capacity | 76L | 20.1 (us gal) | 75L | 19.8 (us gal) |
| Tire | ||||
| Type | 315/55 D20 Foam-filled Tires | 355/55 D625 Foam-filled Tires | ||
| Weight | ||||
| Gross | 7100kg | 15653 lb | 11000kg | 24251 lb |
| Highlights | ||||
| 300kg platform capacity for higher efficiency (ZA14J Only) | ||||
| Build-in multiple pressure control leveling system to enhance stability | ||||
| Precise load sensing system to improve overload safety operations | ||||
| Integrated with rotary reducer to enhance rotation stability | ||||
| Hostile Kits available for dusty working environment | ||||
| Deadweight Lowering System for smooth operation and energy efficiency | ||||
| Features | ||||
| Standard Features | Accessories ＆ Options | |||
| Horn | Platform work lights | |||
| All motion alarm | Anti-collision device | |||
| Proportional control | AC power to platform | |||
| Self-closing entry gate | ||||
| Flashing amber beacon | ||||
| Auto-leveling system | ||||
| Emergency stop button | ||||
| Over tilt protection system | ||||
| Emergency descent system | ||||
| On-board diagnostic system | ||||
| Oscillating axle | ||||
| 4.3' LED display | ||||
| Load sensing system | ||||
| Swing-out engine tray | ||||
