| İlan No | 2113 |
|---|---|
| İlan Tarihi | 21 Temmuz 2026 |

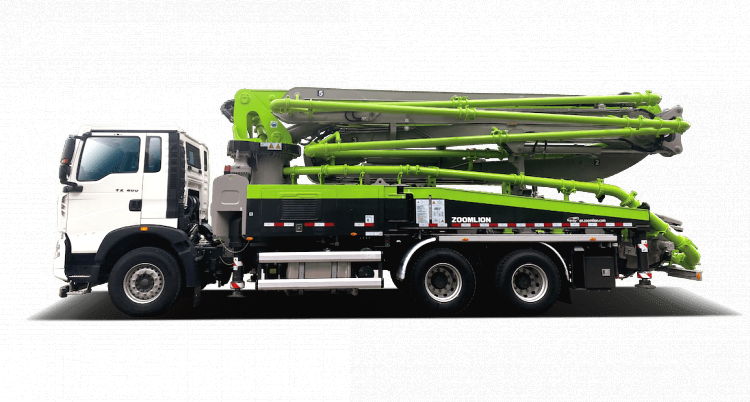

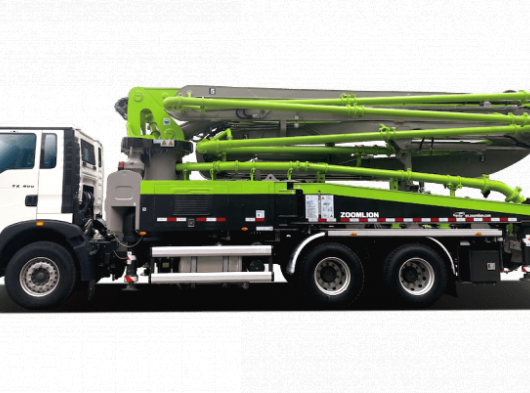

| Marka | Beton Pompası |
| Seri | Zoomlion |
| Model | Unit | ZLEU 36X-5Z | |
|---|---|---|---|
| Pumping system | Max. Theor. Output | m3/h | 120 |
| Max. Theor. concrete output Pressure | MPa | 7 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | 24 | |
| Hopper capacity | L | 550 | |
| Filling height | 1540 | ||
| Hydraulic system type | opened loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.×stroke | mm | φ130×2100 | |
| Concrete cylinder dia.×stroke | mm | φ230×2100 | |
| Hydraulic oil cooling | Wind cooling | ||
| Recommended concrete slump | cm | 12～23 | |
| Max. aggregate dimension | mm | 40 | |
| Placing boom | Structure type | 36X-5Z | |
| Vertical reach | m | 35.5 | |
| Horizontal distance | m | 31.1 | |
| Placing depth | m | 23.3 | |
| Slewing angle | ±270° | ||
| Boom number | 5 | ||
| The length of boom section | mm | 7700/5950/5950/5950/5950 | |
| Sections folding angle | 90°/180°/230°/180°/250° | ||
| ipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Colour of Boom Structure | Aurora Green | ||
| Min. height of opening placing boom | mm | 8520(7020) | |
| Boomkit weight | kg | 16640 | |
